Ultrasonic Surgical Devices-Harmonic Scalpel System
Key features

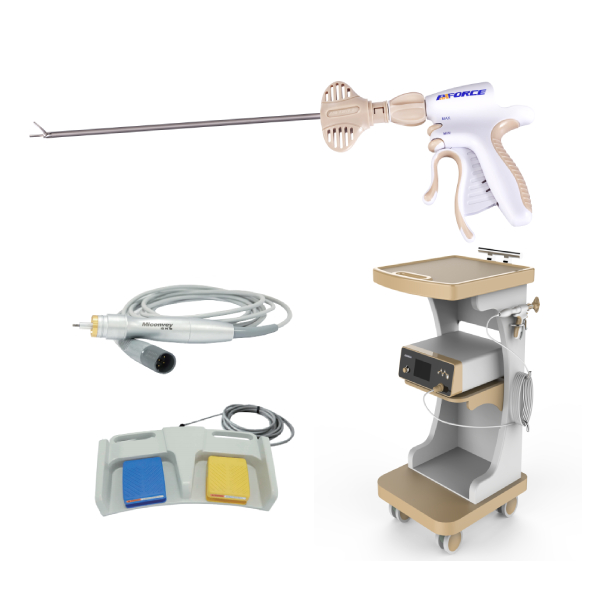

The ultrasonic surgical system is composed of scalpel, generator,
handpiece, foot switch and power cable
QUHS is the Gun type scalpel and has the following features.
1.1 Self-adaptive tissue technology
Enables stronger and more reliablesealing in a wide range of
vessels.
1.2 Precise dissection and coagulation
Precise dissection and rellable hemostasis.
1.3 Minimal thermal spread
The smallest eschar and desiccationon the tissue and less tissue
sticking compared with electrosurgery.
1.4 Ergonomic handlegrip design
Reduces fatigue, stabilizes operation.
1.5 Self-regulating handpiece
More optimized power output.
1.6 Generator with smarter computerized algorithm, more stable
power output. The display shows the system error directly
without querying code.Handpiece without use restriction.
1.7 Versatility: applied in separating, grasping, cutting and
coagulating without replacing instruments
1.8 The heat injury around the tissue is very small (less than
1mm), which enhance safety .
1.9 Special coating to prevent tissue adhesion and increase the
service life of the ultrasonic scalpel (or ultrasonic shear).
Ultrasonic Surgical Devices-Harmonic Scalpel System

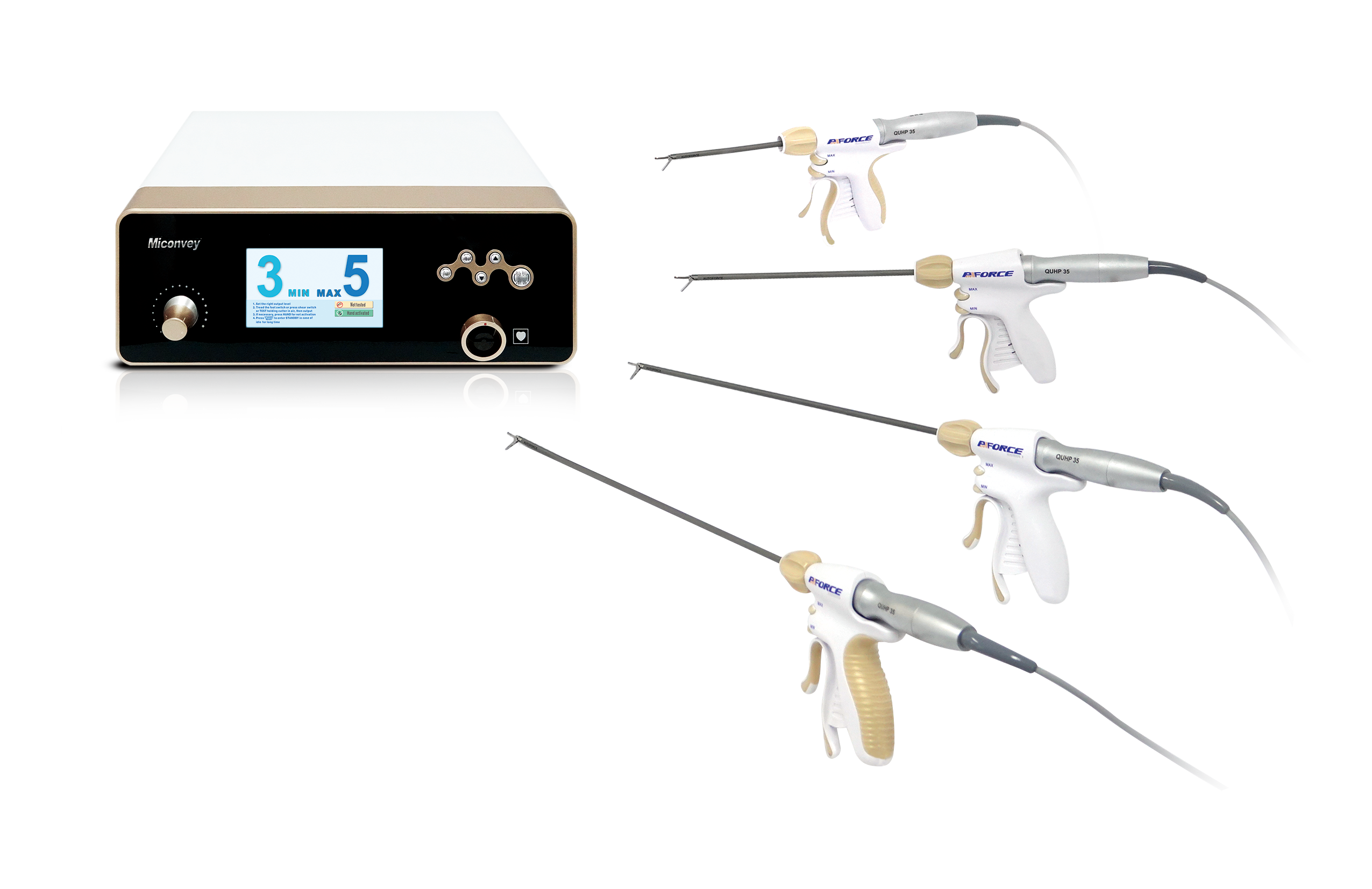

Product Specification
| PRODUCTS | CODE | DESCRIPTION | PACKING |
| Generator | K500 | Simple and easy operation | 1pc/case |
| Scalpel | QUHS14S |
Gun-shaped
Diameter 5mm, Length 140mm
| 3pc/case |
| QUHS23S |
Gun-shaped
Diameter 5mm, Length 230mm
|
| QUHS36S |
Gun-shaped
Diameter 5mm, Length 360mm
|
| QUHS45S |
Gun-shaped
Diameter 5mm, Length 450mm
|
| Handpiece | QUHP35 | Resonant Frequency: 55.5 kHZ | 1pc/case |
| Foot Switch | QFS02 | Foot switch (optional) | 1pc/case |
| Cart | C100 | Mobile Cart(optional) | 1pc/carton |
Ultrasonic Surgical Devices-Harmonic Scalpel System
Product details
Applications
Where Ultrasonic Scalpel Can Be Used?
(1) Ophthalmology and otorhinolaryngology: tonsillectomy,
parotidectomy
(2) Head and neck surgery: thyroidectomy, cervical lymphadenectomy
(3) Breast surgery: radical mastectomy for breast cancer, mastectomy
for breast lumps, axillary lymphatic dissection
(4) Hepatobiliary surgery: gallbladder and appendix surgery, liver
surgery
(5) Thoracic surgery: radical surgery for esophageal cancer, radical
surgery for lung cancer, mediastinal surgery
(6) Gastrointestinal surgery: gastric cancer, colorectal,
pancreaticoduodenal surgery, hemorrhoid surgery
(7) Gynecology: adnexal resection, total hysterectomy, pelvic lymph
node dissection
(8) Urology: minimally invasive surgery, renal cystectomy,
adrenalectomy, radical cystectomy
Ultrasonic Surgical Devices-Harmonic Scalpel System
Our service
Miconvey is a high-tech enterprise specialized in researching and
manufacturing high-level surgical instruments.We mainly focus on
the minimally invasive surgical operations, providing professional
surgical instruments with top quality among General Surgery,
Thoracic Surgery, OB/GYN….etc.
Our products cover Endoscopic Linear Cutting Stapler, Linear
Cutting Stapler, and Ultrasonic
surgical system and have been sold to
more than 38 countries and regions globally.
Once you purchase the Miconvey products, you will get our full
service which also reflects in perfect details. We provide
professional
and efficient service to get the trust and support to
"Miconvey",continuously enhance customers’ satisfaction and
loyalty.
Miconvey quality service is reflected in our training, technical
support, problem feedback, work improvement and other aspects.
Well-training will be offered to help you practice in the
simulation environment,until you master the operating skills. At
the same time
we will participate in surgery to guide doctors to better use our
products. of course , we will help our clinent to organize various
academic
conference and activities.
We have established a customer feedback system which allows us to
respond quickly to your feedback and suggestions from
our website or through our customer service hotline.
All efforts for health, to become a global well-known life science
company.
